PRODUCT FEATURES

• The structural design of the broken bridge profile effectively improves the sound insulation effect and the overall thermal insulation performance of the house, and prevents the transfer of indoor and outdoor heat energy.
• Three-way sealing design, adding EPDM sealing tape to improve the sealing performance of the whole window.
• The corners of the frame and the fan group adopt the pin glue injection process to ensure the stability, sealing and waterproof performance of the corner connection.
• 304 stainless steel gold steel gauze fan is used, which is safe and anti-theft, anti-mosquito and anti-insect.

TECHNICAL PARAMETERS

Aluminum Profile：Thickness 1.5mm、European Standard 6060-T5High-Strength、
Allowable Strength=84.2N/m ㎡
Track Width： 100mm
Door Leaf Widt： Outer Frame 40.6mm/Sash 68mm

PRODUCT CONFIGURATION

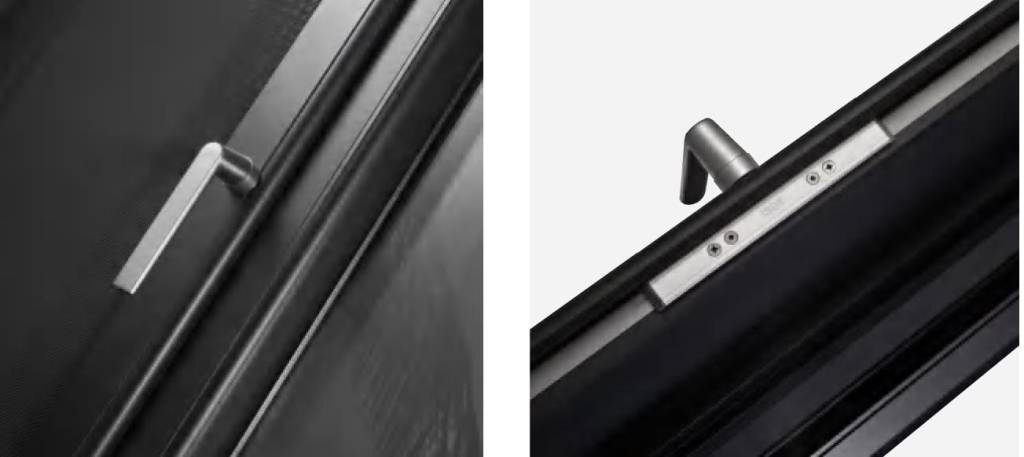

Default Lock： VBH
Default Roller： VBH lock base, CMECH hinge, self-design lock
Glass Specification：Double Glazing Tempered Unit 4mm+9Air+5mm
Flyscreen  Specification：304 stainless steel mesh
Opening Mode： Inward Opening、Tilt & Turn、Outward Opening、Awning Opening

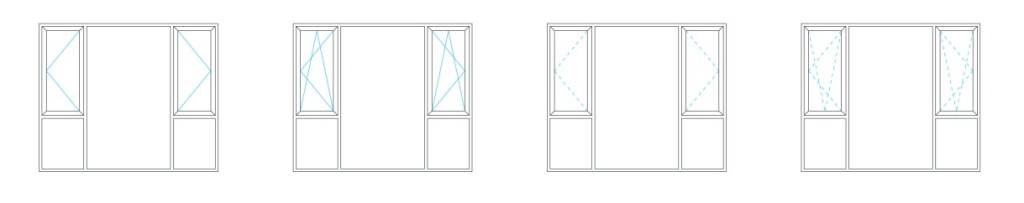

OPENING MODE

PRODUCT FEATURE

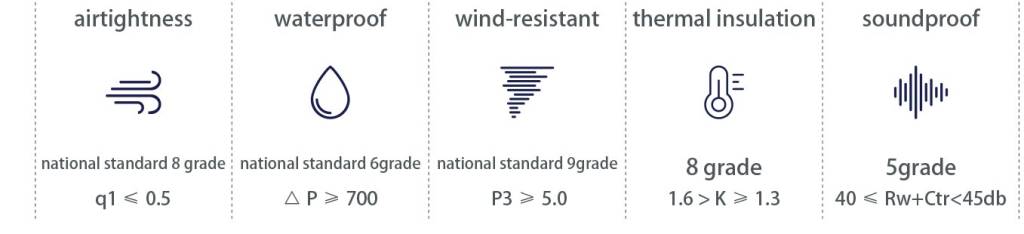

PERFORMANCE INDEX
