PRODUCT FEATURES

• The structural design of the broken bridge profile effectively improves the sound insulation effect and the overall thermal insulation performance of the house, and prevents the transfer of indoor and outdoor heat energy.
• The frame fan structure adopts glue injection type corner code connection to increase the structural strength, high safety performance, strong bearing capacity, and strong wind pressure resistance.
• PA66 nylon insulation strips cut off the heat transfer channels and bring stable thermal insulation performance to the entire window.
• EPDM sealing tape has strong weather resistance, environmental protection and no peculiar smell, and has excellent watertight and airtight performance.

TECHNICAL PARAMETERS

Aluminum Profile：Thickness 1.6-1.8mm、European Standard 6060-T5High-Strength、
Allowable Strength=84.2N/m ㎡
Track Width： 120mm
Door Leaf Widt： Outer Frame 40.6mm/Sash 82mm

PRODUCT CONFIGURATION

Default Lock： HOPPE
Default Roller： VBH lock base, CMECH hinge, self-design lock
Glass Specification：Double Glazing Tempered Unit 4mm+9Air+5mm
Flyscreen Specification：304 stainless steel mesh
Opening Mode： Inward Opening、Tilt & Turn、Outward Opening、Awning Opening

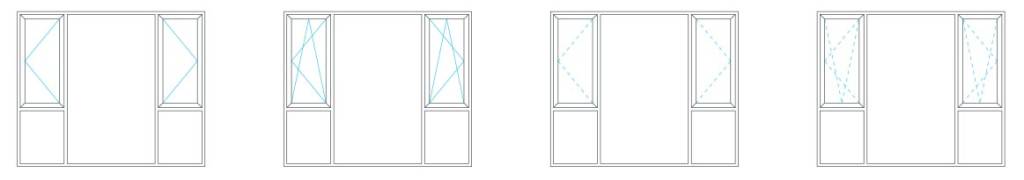

OPENING MODE

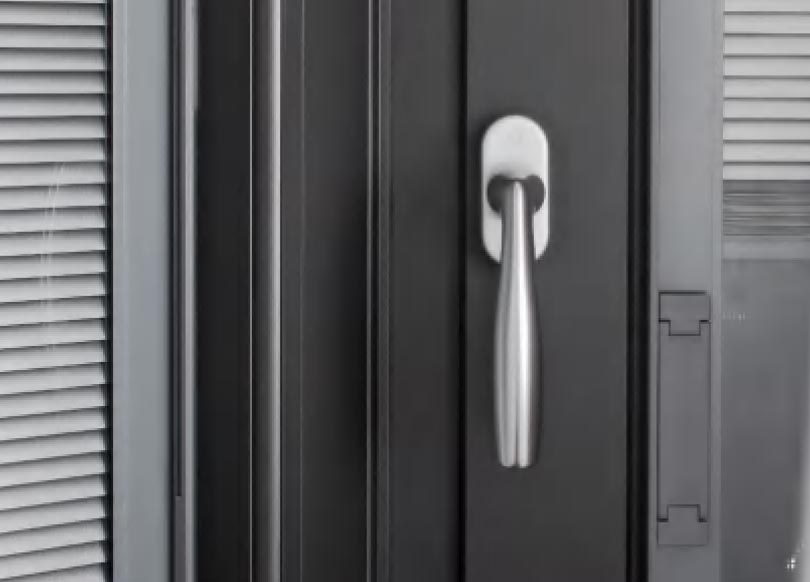

PRODUCT FEATURE

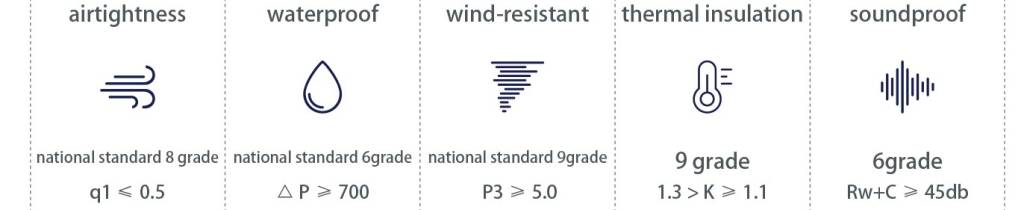

PERFORMANCE INDEX
