PRODUCT FEATURES

• The structural design of the broken bridge profile effectively improves the sound insulation effect and the overall thermal insulation performance of the house, and prevents the transfer of indoor and outdoor heat energy.
• The frame fan structure adopts glue injection type corner code connection to increase the structural strength,  high safety performance, strong bearing capacity, and strong wind pressure resistance.
  PA66 nylon insulation strips cut off the heat transfer channels and bring stable thermal insulation
  performance to the entire window.
• EPDM sealing tape has strong weather resistance, environmental protection and no peculiar smell, and has excellent watertight and airtight performance.

TECHNICAL PARAMETERS

Aluminum Profile：Thickness 1.6mm、European Standard 6060-T5High-Strength、
Allowable Strength=84.2N/m ㎡
Frame Depth： 56.8mm
Viewable Area： Outer Frame 38mm/ Sash 82mm

PRODUCT CONFIGURATION

Default Handle： HOPPE
Hardware System：VBH lock base, CMECH hinge, self-design lock
Glass Specification：Double Glazing Tempered Unit 5mm+15Air+5mm
Opening Mode： Inward Opening、Tilt & Turn、 Outward Opening、Awning Opening

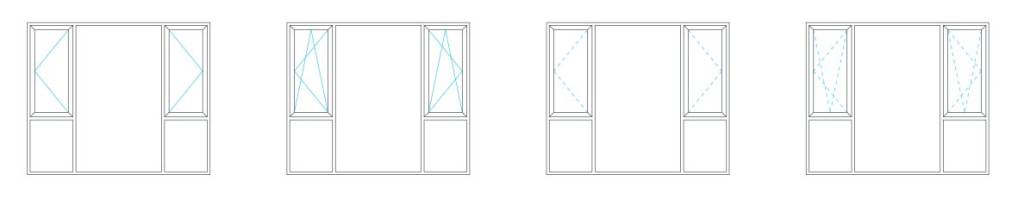

OPENING MODE

PRODUCT FEATURE

PERFORMANCE INDEX
